KSKR-1 Sever Motherboard Intel C621A

KSKR-1 Sever Motherboard Intel C621A

CPU:

Dual Intel 3^rd Scalable Processors

Display:

1 * VGA (DB15/F or Wafer)

Memory:

Up to 4TB, 32 * ECC RDIMM/LRDIMM Slot



Storage:

6 * SlimSAS 8i

3 * MiniSAS HD 4i

2 * SATA 3.0 (SATA 7P, with 1 * SATA Power Wafer)

Ethernet：

3Ports

Expansion Slots：

2 * Riser Card slot

1 * OCP3.0

BMC：

Support IPMI 2.0

COM：

1 * RS232 (RJ45 or Header)

1 * RS232 (Header)

USB：

2 * USB3.0 TYPE-A, Rear IO

2 * USB3.0 Header, Internal

2 * USB2.0 Header, Internal

1 * USB2.0 TYPE-A, Internal

Other Ports：

2 * Panel Header

4 * System FAN Connector

3 * System FAN Wafer

1 * CPU FAN Wafer

1 * JTG PLD Header

1 * BMCICE Header

1 * VR Control Header

1 * Buzzer Header

1 * PMBus Header

1 * Power Clear Jumper

2 * CMOS Clear Jumper

TPM：

SLB9670VQ2.0, TPM2.0 onboard

Power Supply：

2 * Power Edgecard, support 1+1 Redundant Power supply

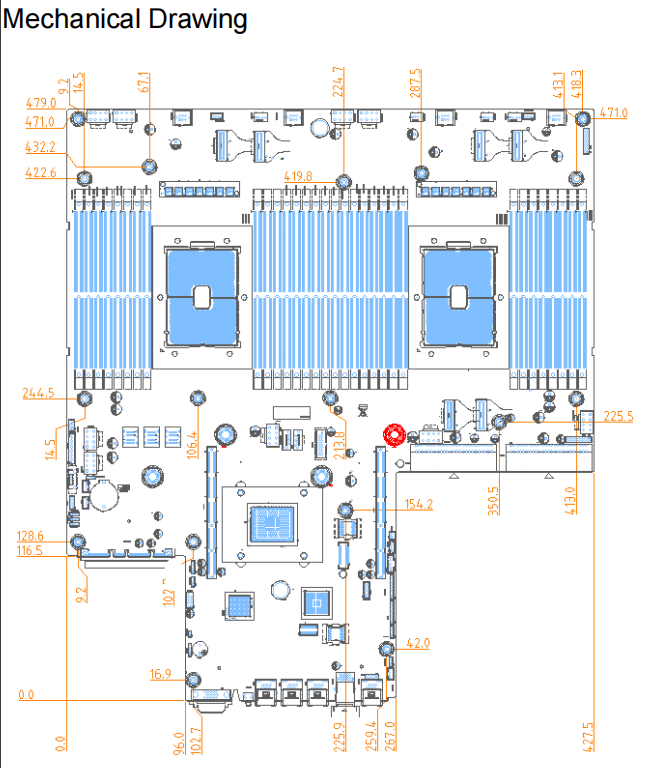

Factor Size：

479mm*427.5mm
